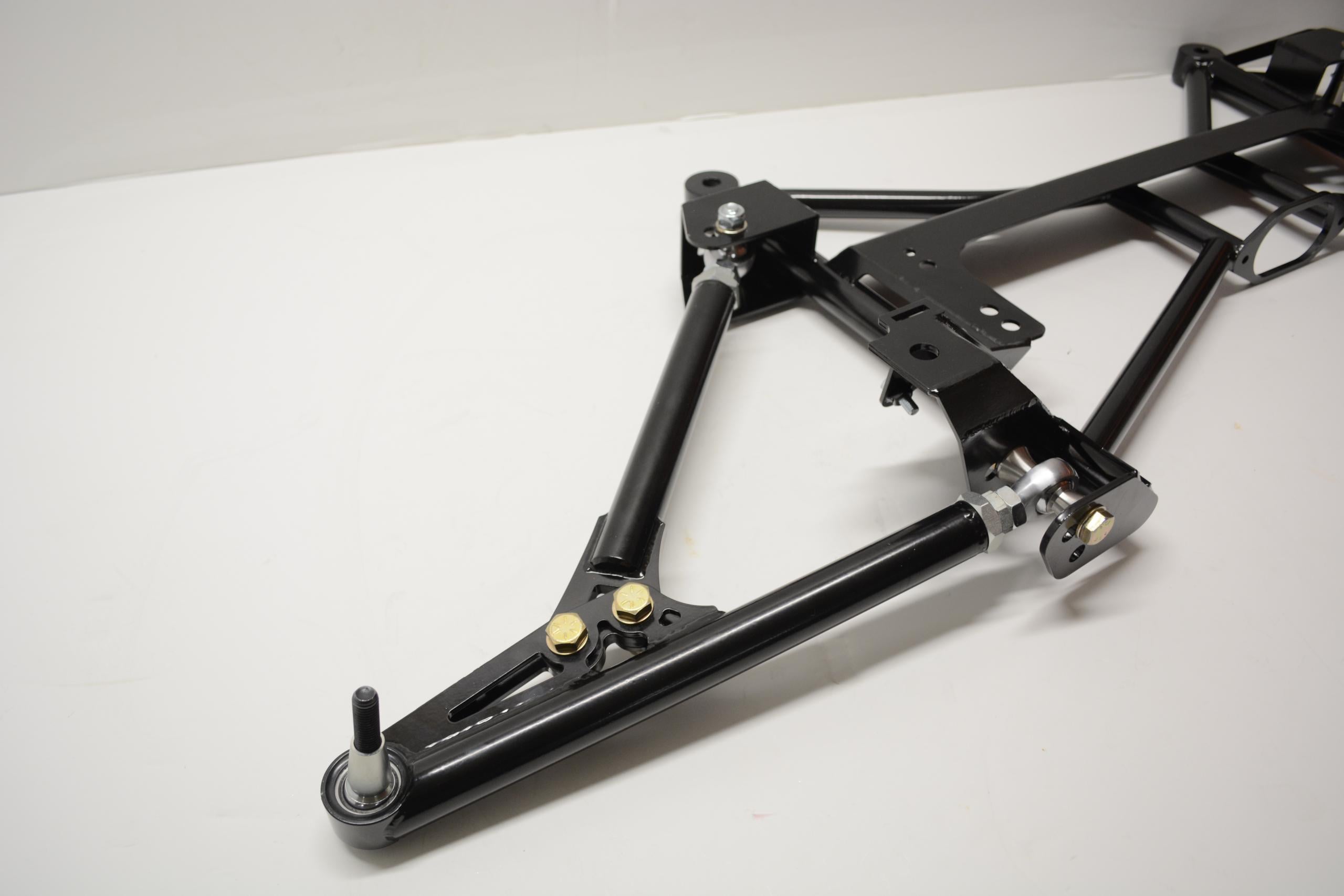

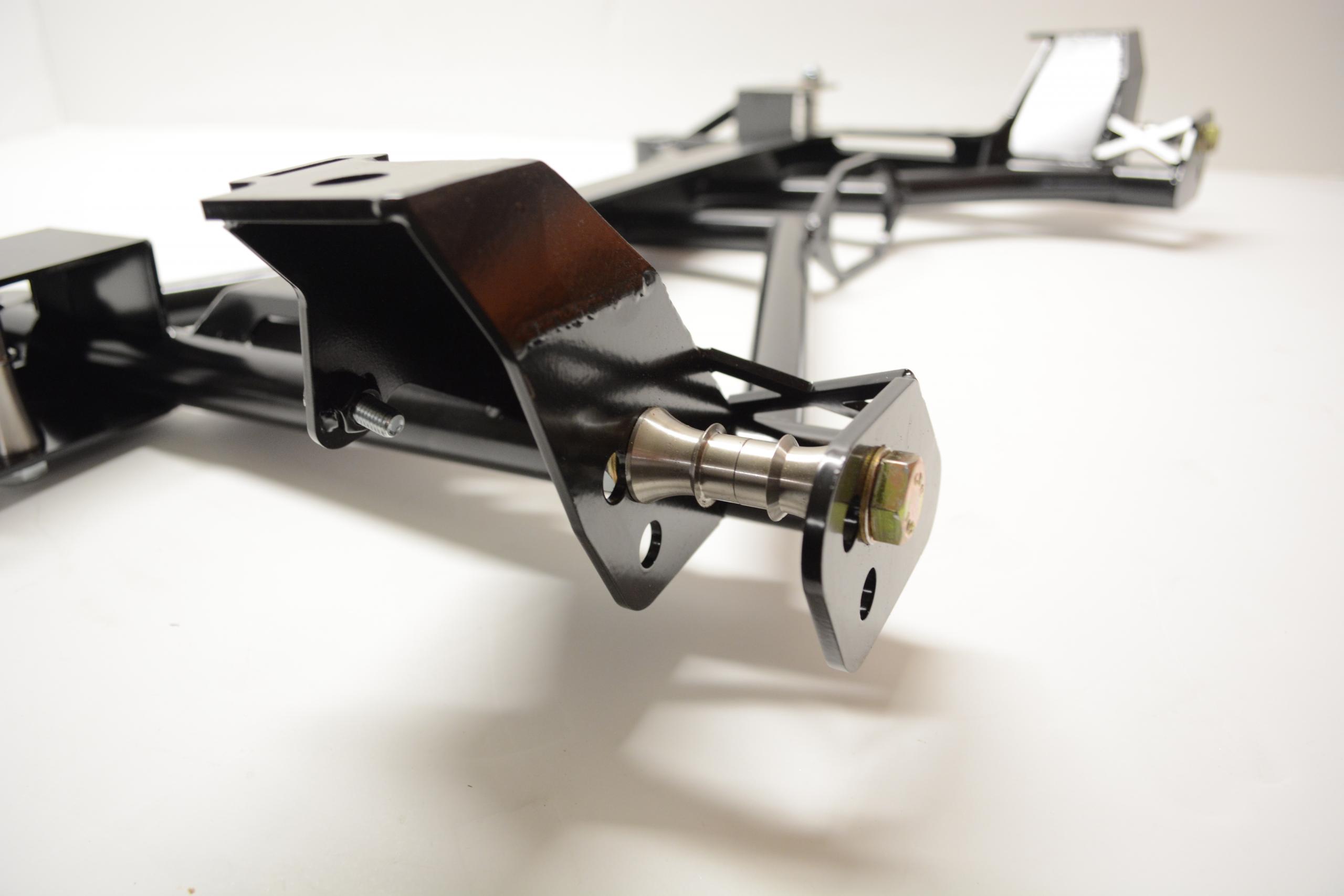

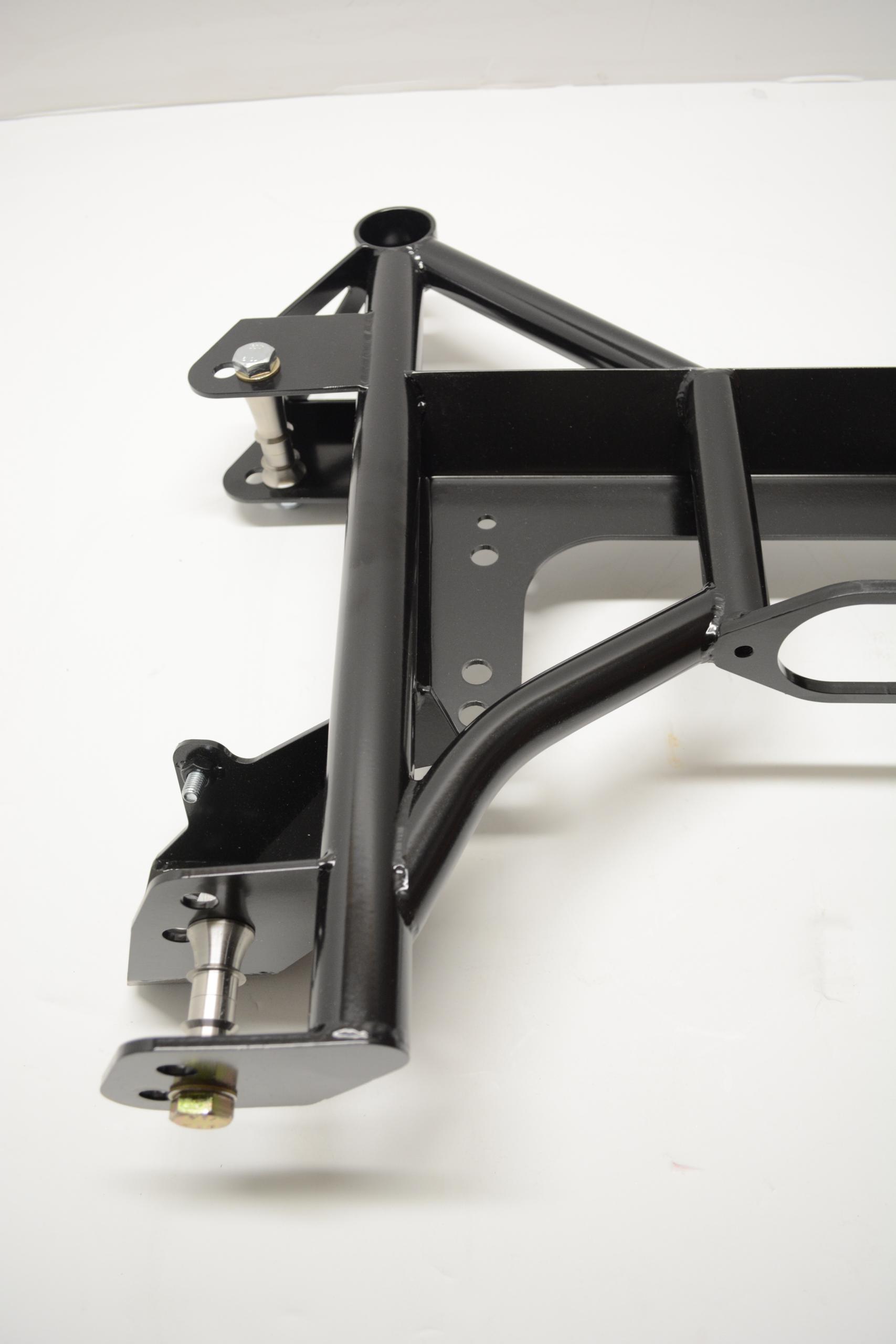

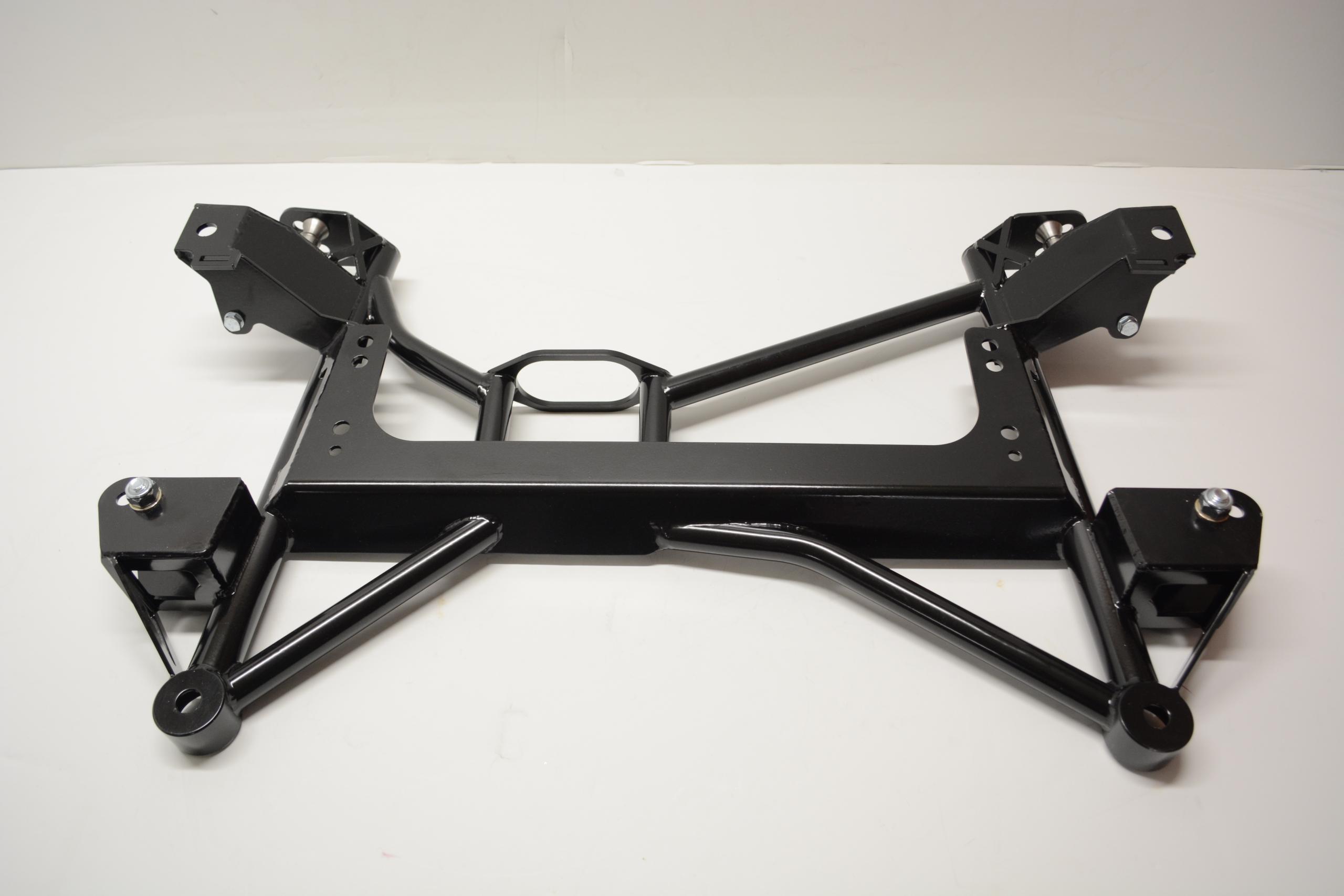

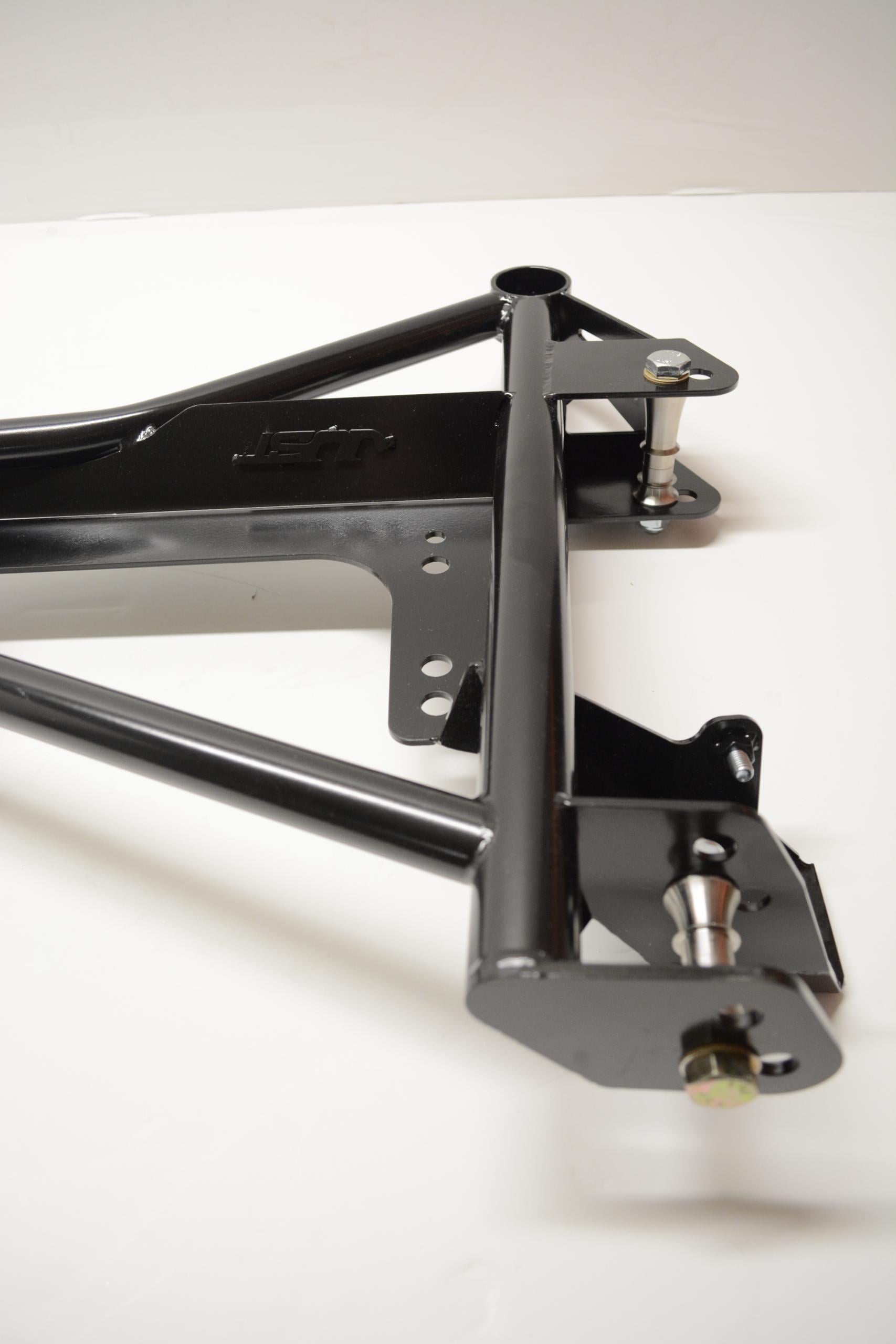

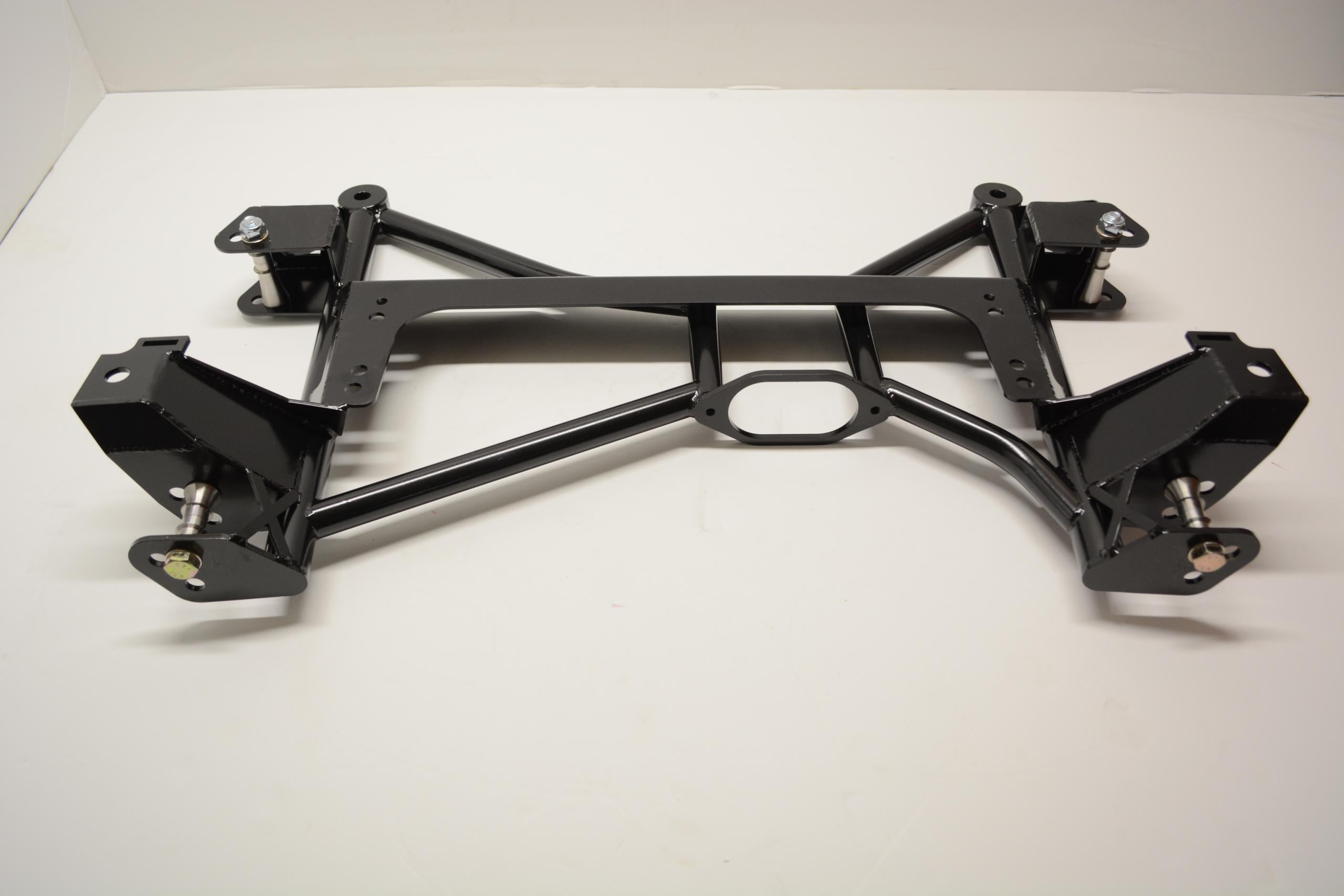

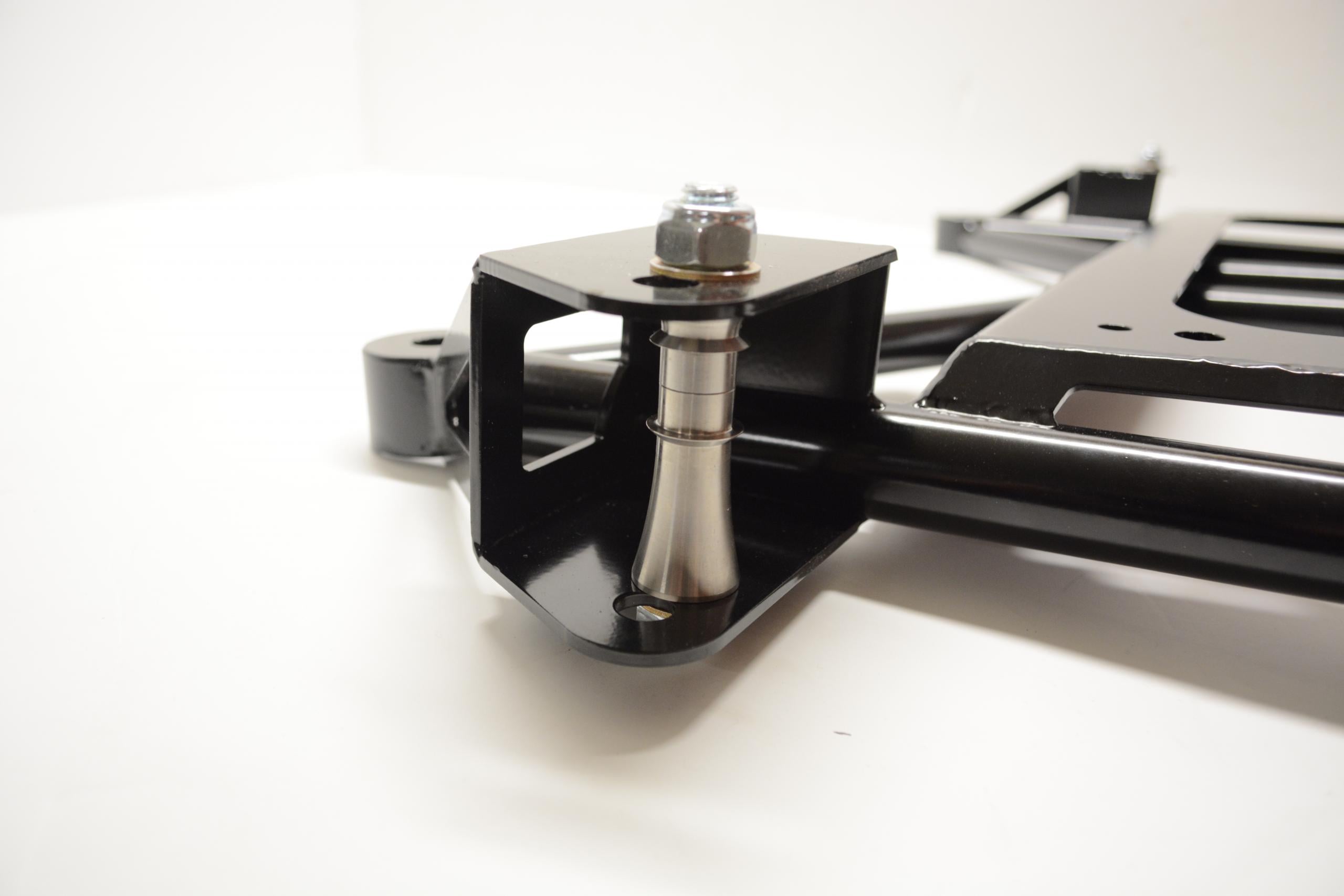

Tubular Subframe for MK4 Golf chassis based cars

£785.00 incl VAT £654.17 ex VAT

Tubular subframe for mk4 chassis based cars

SKU: TUBSUB2 Category:

Description

Stage 2 Subframe

The construction of this subframe is extremely similar to the stage1, same quality chromoly 4130 tubing and 4140 billet frame anchorage. The suspension arms (LCA) attachment point was raised 1inch to lower the center of gravity and to bring back some natural camber when the suspension is completely compress, but we maintain the rack and pinion at the stock position which will throw the bumpsteer out of specs. You can still drive it on the street without problem until you go thru all of your suspension travel, there will be a sudden tweech in the direction(steering).

This subframe is design to work perfectly (corrected bumpsteer) with our racing kit or if you want that extra low for you show car and need to have a completely bolt on subframe and don’t mind the toe issue

  • Completely bolt on, NO trimming is required
  • Expect toe issues
  • No engine spacers required
  • Stiffer and lighter (25%) over stock unit
  • Compatible with stock transmission mount (dog bone)
  • Impossibility to run stock mk4 arms but compatible with other aftermarket brand

ALL THE TUBULAR ARM/SUBFRAME RANGE ARE APPROX 4-6 WEEK LEAD TIME FOLLOWING PURCHASE

Additional information

Weight 8 kg
Dimensions 85 × 60 × 20 cm
