Description

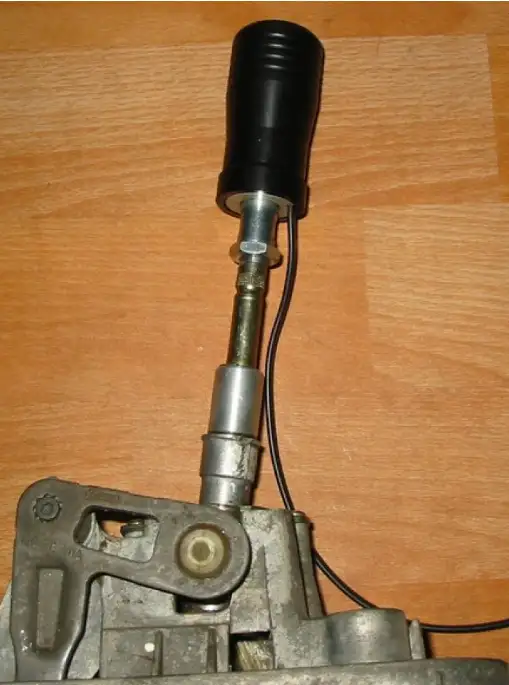

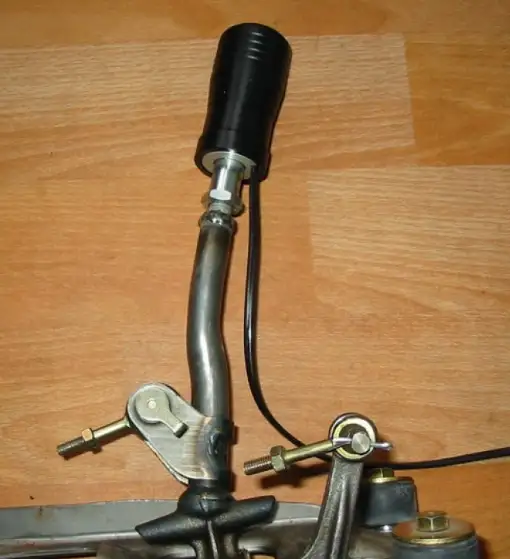

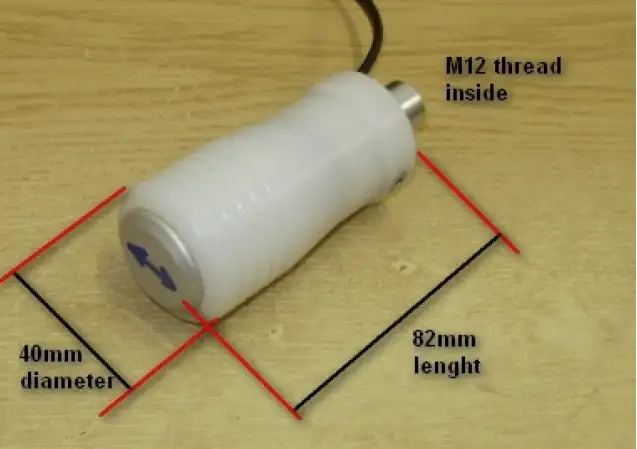

Shifting Knob with 2x microswitch inside .
Designed for Power-Shifting with full throttle – by pulling on the gear knob it switches a signal for shift-cut !
Possible use also with H-pattern !

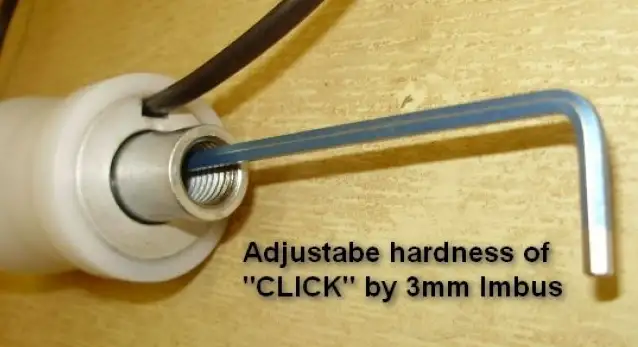

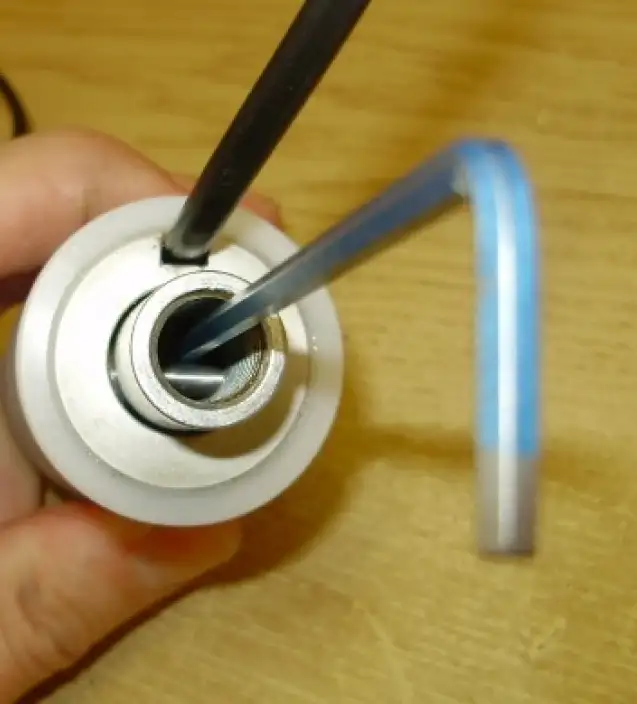

Adjustable hardness of CLICK !
Internal design – all from Dural and Steel, plastic only surface of Knob !
Now only in BLACK colour !

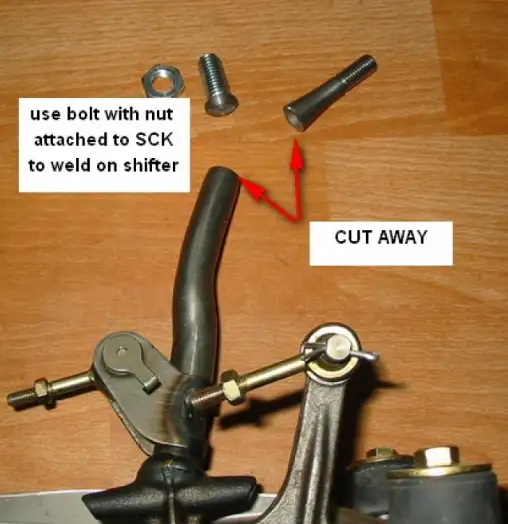

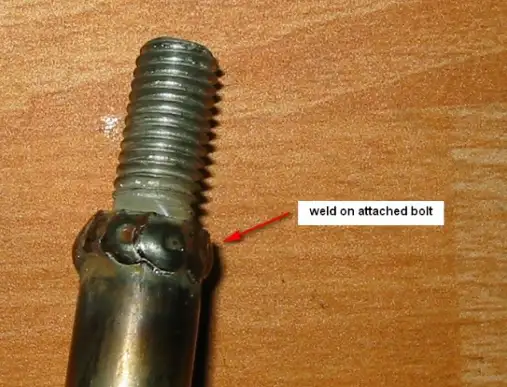

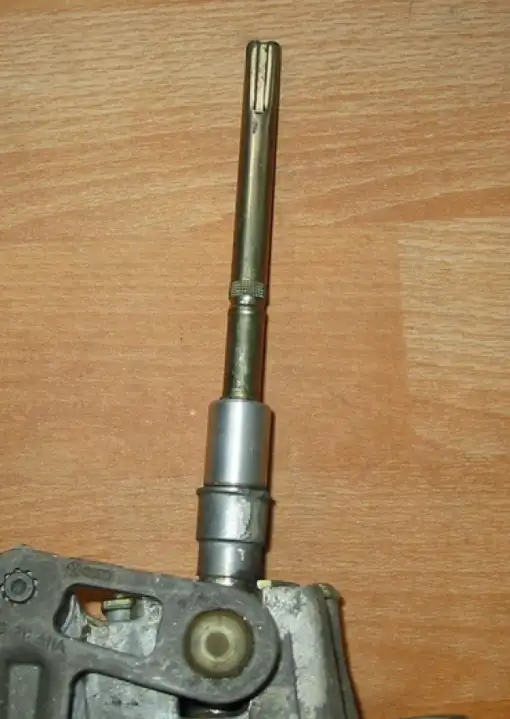

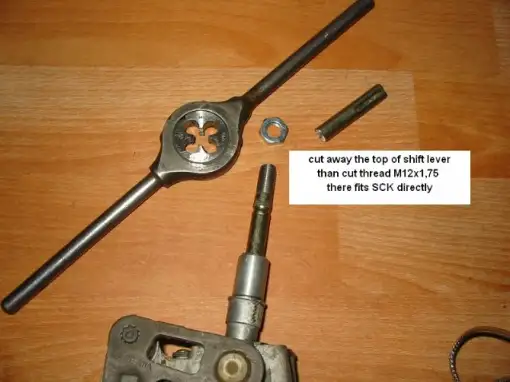

Connecting thread in bottom: M12x1,75 (delivered incl. bolt to be welded on any H-shifter…)
2 different versions !
BASIC
– 2x microswitches, 2 wires, giving same signal by up and down shifting – usual for H-pattern

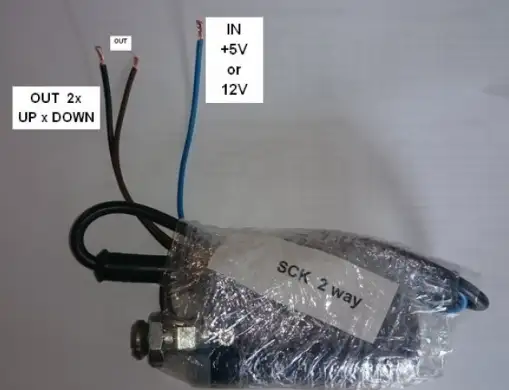

TWO-WAY
– 2x microswitches, 3 wires, giving signal by up shifting to one wire, by down shifting to second wire – usually for SEQUNETIAL
Of course can left one wire off or connect them together (then its same as the BASIC)
