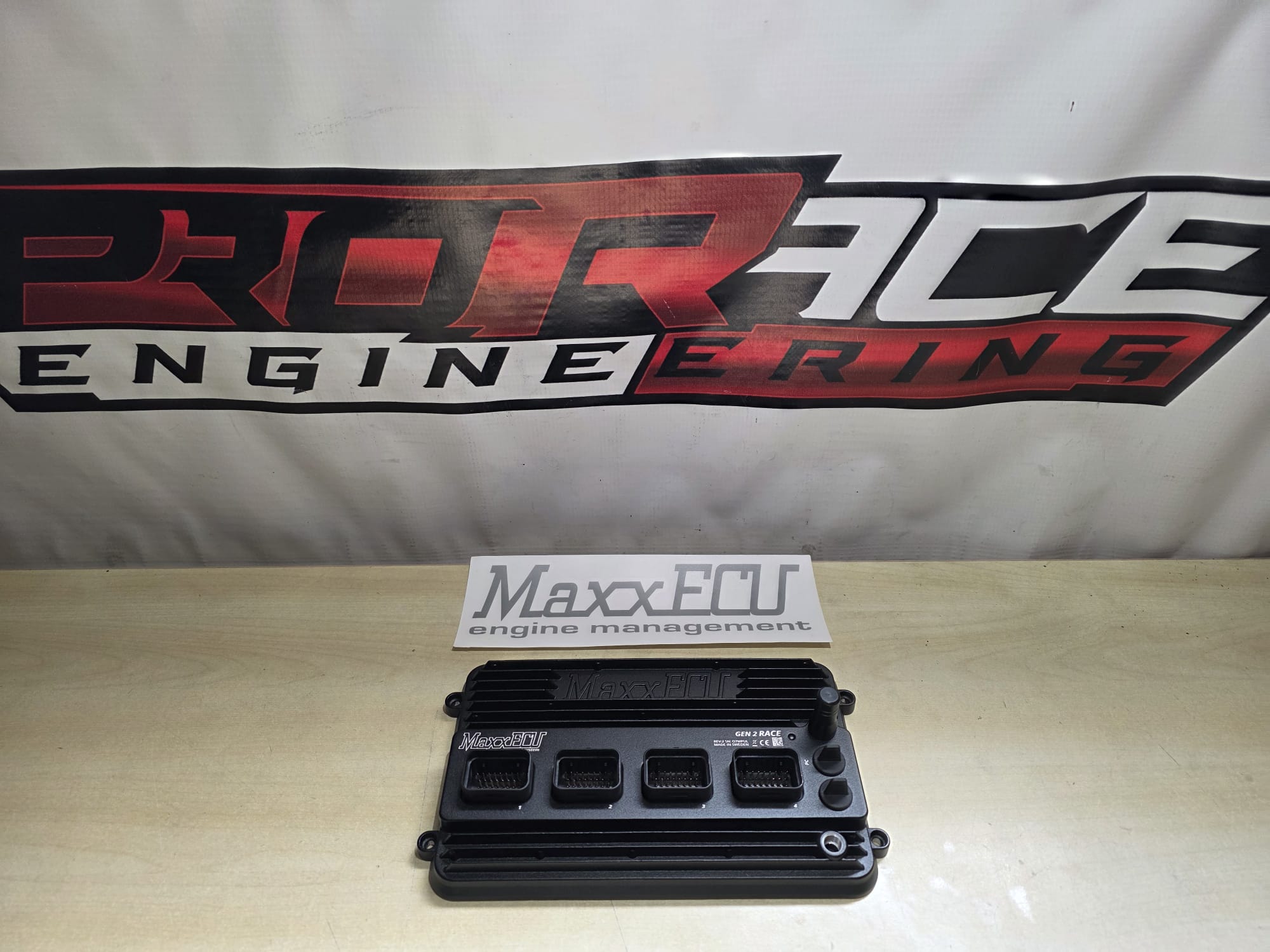

MaxxECU GEN2 RACE

MaxxECU GEN2 RACE

Price range: £1,620.00 through £2,430.00
Thanks for being a trade member. You save on this product.

MaxxECU GEN2 RACE — flagship MaxxECU standalone engine management ECU for race motorsport applications. Full sequential fuel and ignition control with knock detection, drive-by-wire, motorsport features and CAN-bus expansion. Strong Swedish-engineered alternative to Haltech / ECUMaster at a competitive price.

Stock & dispatch: check the live stock status shown above. UK in-stock items dispatch next working day on orders placed before 2pm. Drop-ship, special-order and made-to-order items have variable lead times — please contact our team on 01621 473023 or [email protected] for accurate timing before ordering.

Found this product at a lower price?
x
SKU: N/A Category:

Description

Features

Volumetric efficiency fuel tuning
Boost control (triple stage)
Launch control
Anti-lag with cooldown features
Traction and power management control
Shift cut and sequential gearbox control
Flexfuel
Nitrous with purge and multiple stage control
Knock control
VANOS / VVTi, variable valve timing
Auto trans (4L60/65/80/85E, A340/341/650E)
OEM CAN integrations
DSG / DCT / 8HP CAN gearbox control
Internal log up to 1000Hz
Waterproof IP68
550 kPa MAP sensor (4.5 bar / 65 PSI boost)
16 injector
12 ignition
16 GP outputs
8 pulse inputs
24 analog inputs
8 built-in EGT
Dual Wideband Lambda
Dual CAN
Dual knock
Dual USB-C
WIFI and Bluetooth
Aluminium case

Target Engines of MaxxECU GEN2 RACE

All 1-12 cylinder engines (2/4-stroke)
Up to 12 cylinders fully sequentially
Up to 12 cylinders in wasted spark

Inputs
8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
24 Analog inputs (selectable pullups)
8 Exhaust Gas Temperature inputs (TYPE-K)
Dual wideband lambda (LSU 5.2/4.9/4.2)
Dual knock sensor input

Outputs
16 injectors (Peak-hold high/low impedance) / GP outputs
12 IGN / GP outputs (selectable +5V/12V/GND)
8 GP Outputs (GND)
4 GP Outputs (+12V)
4 GP Outputs (H-bridge/E-Throttle)

Technical
Superseal 1.0 connectors
550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable,with BSP 1/8 thread
3-axis accelerometer (up to 8 G)
ARM dual core CPU
6-22V operating voltage
16GB internal log capacity, 1000Hz, all 1600+ channels
USB-C 480mbit/s (MTune PC communication)
USB-C 12mbit/s (tablet charging).**
WIFI communication with MTune and MDash**
Bluetooth connectivity with MDash
Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
Resolution on ignition: 0.1 degrees
Resolution on injectors: 0.001 ms
Performs fuel and ignition calculations 3,000 times per second.
200Hz sampling rate on all EGT inputs
2000Hz sampling rate on analog/digital inputs
Weight: 700g
240x138x35mm including protruding connectors
Black powder-coated aluminium case
All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.
**WIFI and USB Port2 not yet supported for communication

Additional information

MaxxECU GEN2 RACE

unit only, with connector kit., with Dual LSU 5.2, flying lead install kit, with LSU 5.2, flying lead install kit
