£3,599.99 incl VAT £2,999.99 ex VAT
Thanks for being a trade member. You save on this product.

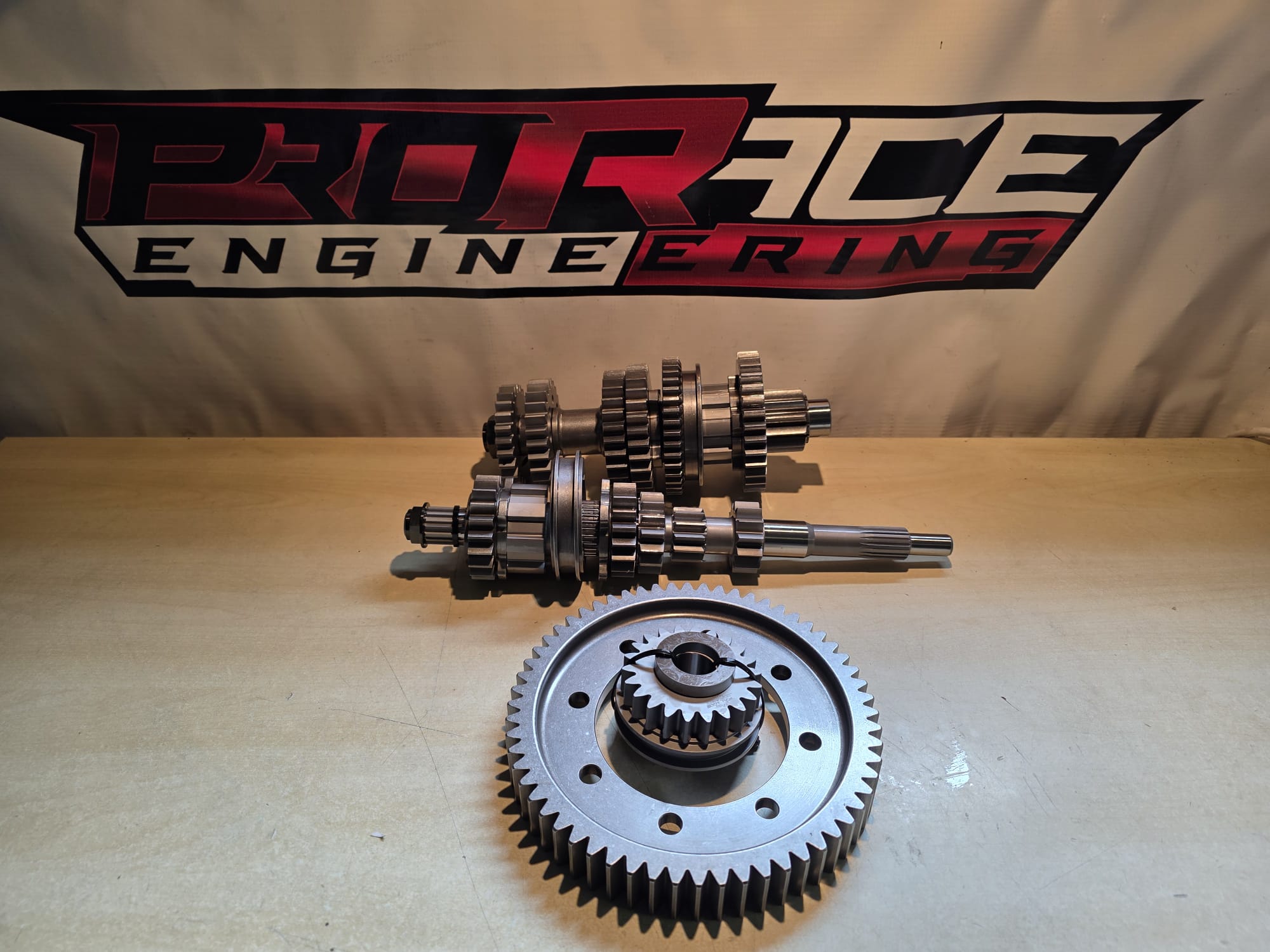

Suzuki Swift Sport Mk4 (Z-series) DOG BOX — premium full sequential dog-engagement gearbox conversion for the Suzuki Swift Sport Mk4 (Z-series chassis, K14C 1.4 Boosterjet engine). Race-grade straight-cut gear set + dog rings + bell-housing adapter. £3,599. UK distributor — built-to-order, lead time at quote.
For availability please email the sales team [email protected]
5speed DOG box to Suzuki Swift SPORT Mk4 (Z) produced in 2004-2010,
with 1,6 and 1,5 engines
-SEQSHIFT avaialable
-LSD disc type available
Ratios:
| Final Drives | ||
| CW | Pinion | ratio |
| 60 | 12 | 5,000 |
| 59 | 13 | 4,538 |
| 59 | 14 | 4,214 |
| teeth | ratio | ||
| 1.gear | 33 | 13 | 2,538 |
| 2.gear | 29 | 15 | 1,933 |
| 3.gear | 27 | 18 | 1,500 |
| 4.gear | 25 | 20 | 1,250 |
| 5.gear | 23 | 22 | 1,045 |
| optional | |||
| 5.gear | 24 | 22 | 1,091 |
download speedcounter below
 |
!racing-gearbox-suzuki-swift-ez-5sp.xls | Speed counter Swift EZ | (0.01 MB) |
For availability please email the sales team [email protected]
