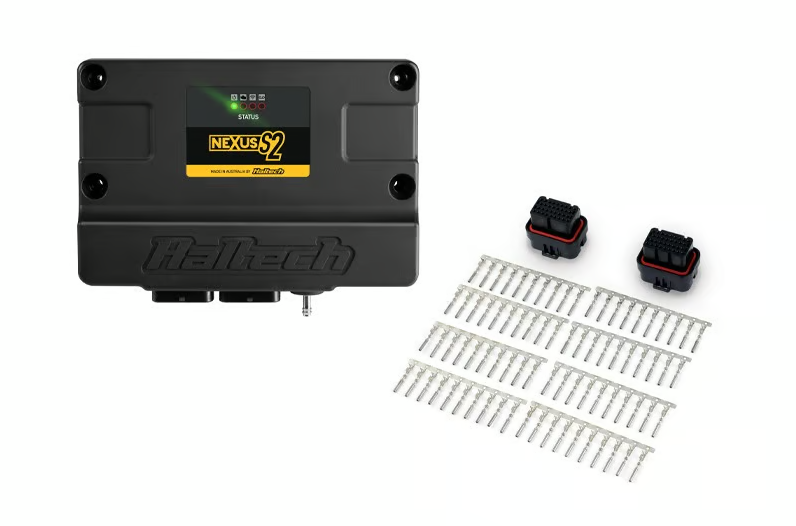

Haltech Nexus S2 ECU + Plug and Pin Set
Haltech Nexus S2 ECU + Plug and Pin Set - Image 2
Haltech Nexus S2 ECU + Plug and Pin Set - Image 3

Haltech Nexus S2 ECU + Plug and Pin Set

£1,493.00 incl VAT £1,244.17 ex VAT
Thanks for being a trade member. You save on this product.

Haltech Nexus S2 ECU bundled with the matching plug and pin set — ready for a custom wire-in install of the Nexus S2 standalone.

Stock & dispatch: check the live stock status shown above. UK in-stock items dispatch next working day on orders placed before 2pm. Drop-ship, special-order and made-to-order items have variable lead times — please contact our team on 01621 473023 or [email protected] for accurate timing before ordering.

Found this product at a lower price?

For availability please email the sales team [email protected]

x
SKU: 212100 Category:

Description

Haltech’s Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
  • 4 x peak/hold injector drivers (can be used as low side drive outputs)
  • 4 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination

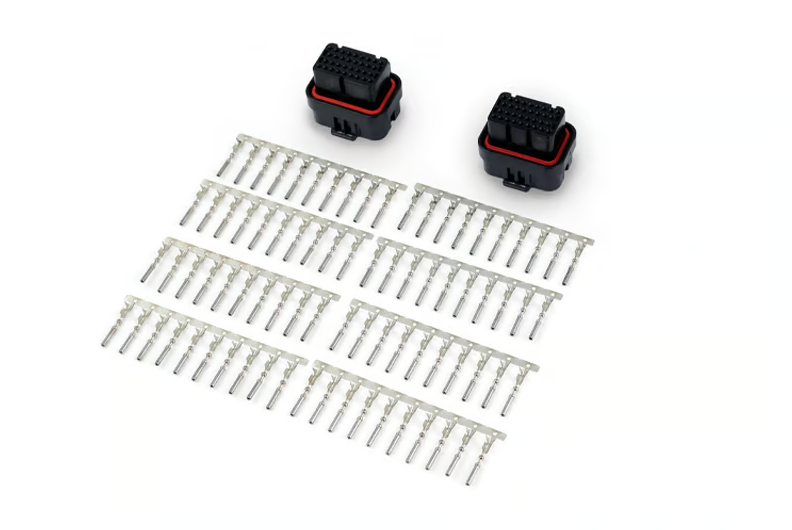

Superseal connector
  • 34 Pin (Key 1) Plug and Pins
Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.
