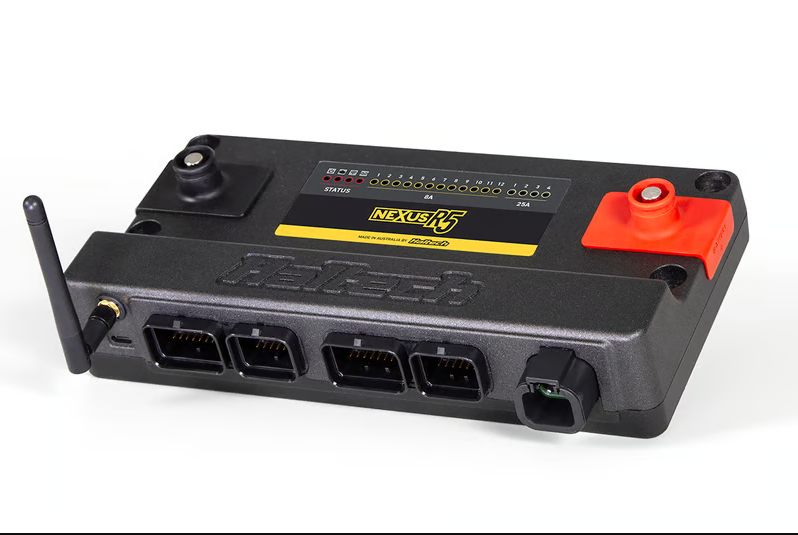

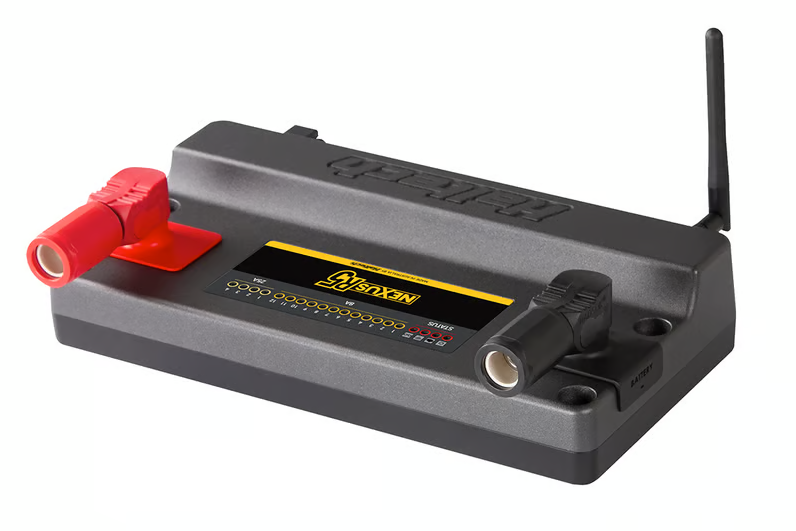

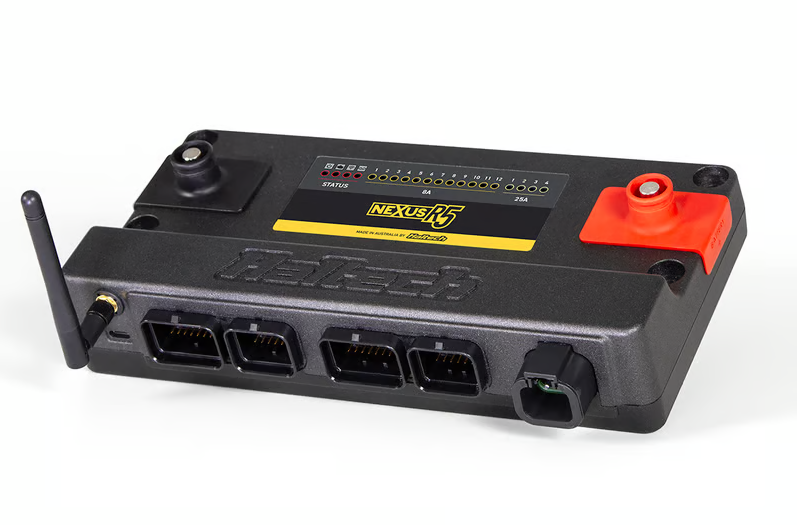

Haltech NEXUS R5 + Plug and Pin Set
Haltech NEXUS R5 + Plug and Pin Set - Image 2
Haltech NEXUS R5 + Plug and Pin Set - Image 3
Haltech NEXUS R5 + Plug and Pin Set - Image 4

Haltech NEXUS R5 + Plug and Pin Set

£3,758.00 incl VAT £3,131.67 ex VAT
Thanks for being a trade member. You save on this product.

Haltech Nexus R5 VCU + plug and pin set (PN HT-195100). Flagship R5 VCU bundled with the connector kit needed for custom harness fabrication. For builders running their own harness build on V8/V10/V12 or complex multi-engine projects. UK Haltech reseller

Stock & dispatch: check the live stock status shown above. UK in-stock items dispatch next working day on orders placed before 2pm. Drop-ship, special-order and made-to-order items have variable lead times — please contact our team on 01621 473023 or [email protected] for accurate timing before ordering.

Found this product at a lower price?

For availability please email the sales team [email protected]

x
SKU: HT-195100 Category:

Description

VCU OVERVIEW
Nexus R5 is Haltech’s flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
  • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
  • 18 x peak/hold injector drivers (can be used as low side drive outputs)
  • 12 x low current ignition outputs (can be used as low side drive outputs)
  • 8 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 2 x onboard wideband controllers, supporting NTK and LSU4.9
  • 3 x CAN ports with switchable termination
Plug and Pin Set – Suits Nexus R5
For use in converting an existing loom to suit NEXUS R5 applications.
