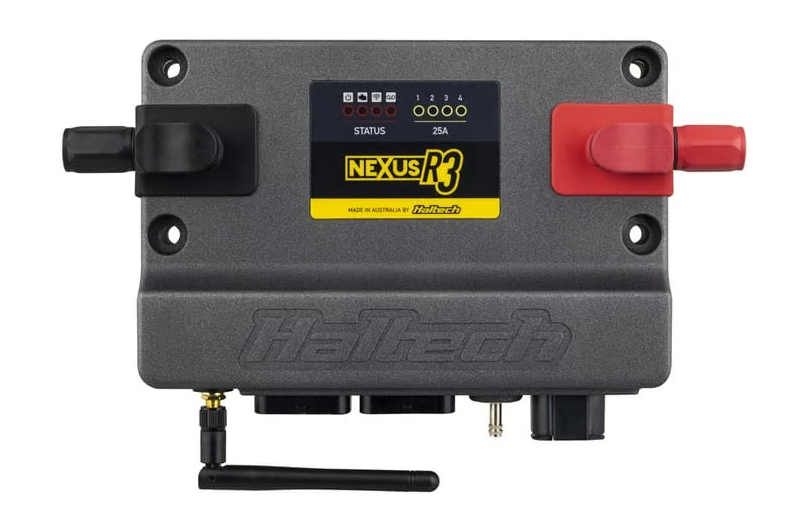

Haltech Nexus R3 VCU

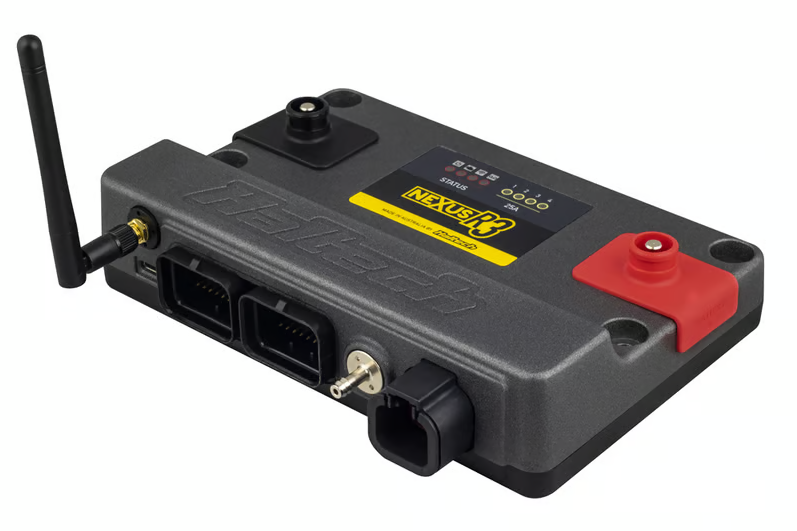

Haltech Nexus R3 VCU - Image 2

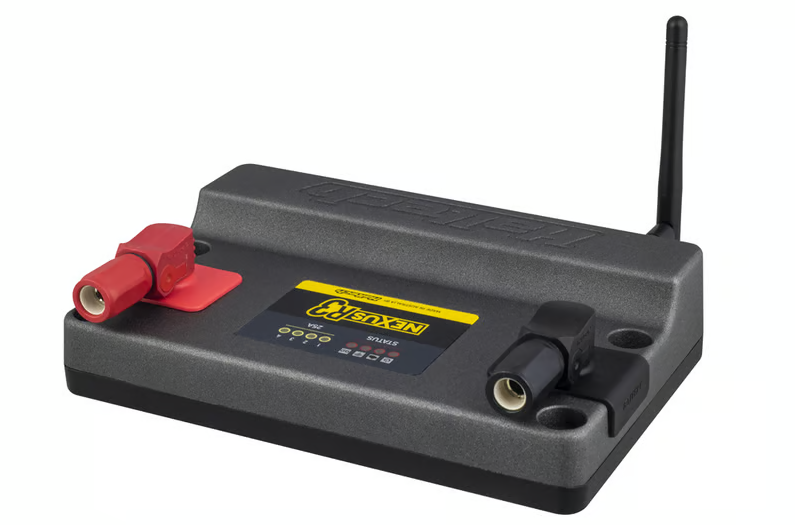

Haltech Nexus R3 VCU - Image 3

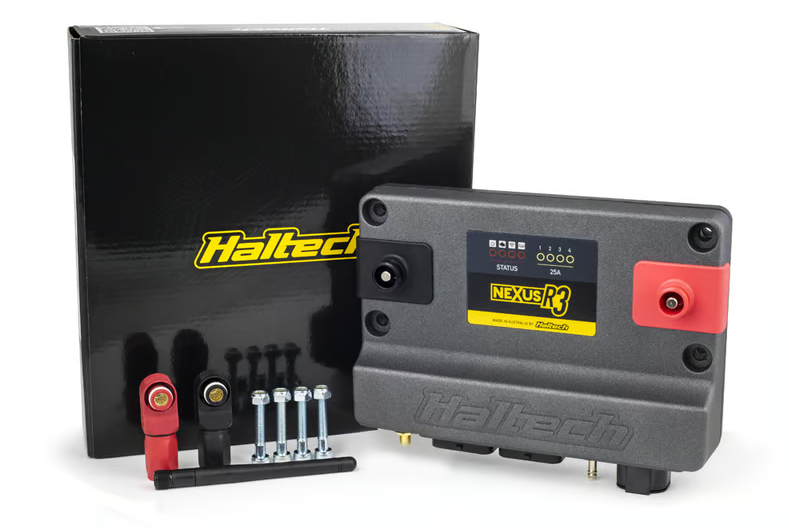

Haltech Nexus R3 VCU - Image 4

Haltech Nexus R3 VCU

£2,069.00 incl VAT £1,724.17 ex VAT
Thanks for being a trade member. You save on this product.

Haltech Nexus R3 VCU (Vehicle Control Unit) — combined ECU + dash + power management + CAN gateway in one compact unit. Up to 6 cylinders sequential injection/ignition, dual wideband, knock control, drive-by-wire, traction, launch, gear-cut and flex fuel. Replaces multiple discrete modules (ECU + PMU + dash). UK Haltech reseller

Stock & dispatch: check the live stock status shown above. UK in-stock items dispatch next working day on orders placed before 2pm. Drop-ship, special-order and made-to-order items have variable lead times — please contact our team on 01621 473023 or [email protected] for accurate timing before ordering.

Found this product at a lower price?

For availability please email the sales team [email protected]

x
SKU: HT-193000 Category:

Description

VCU OVERVIEW
Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
  • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
